Please select one or more basic devices and if necessary options to request a quote Request a quote now
Identnumber	5109277	5036653	5111875	5111827	5102058	5102054	5102055	5106930	5099185	5111879	5110425	5111880	5122364	5110995	5075418	5086632	5072341	5072348	5101927

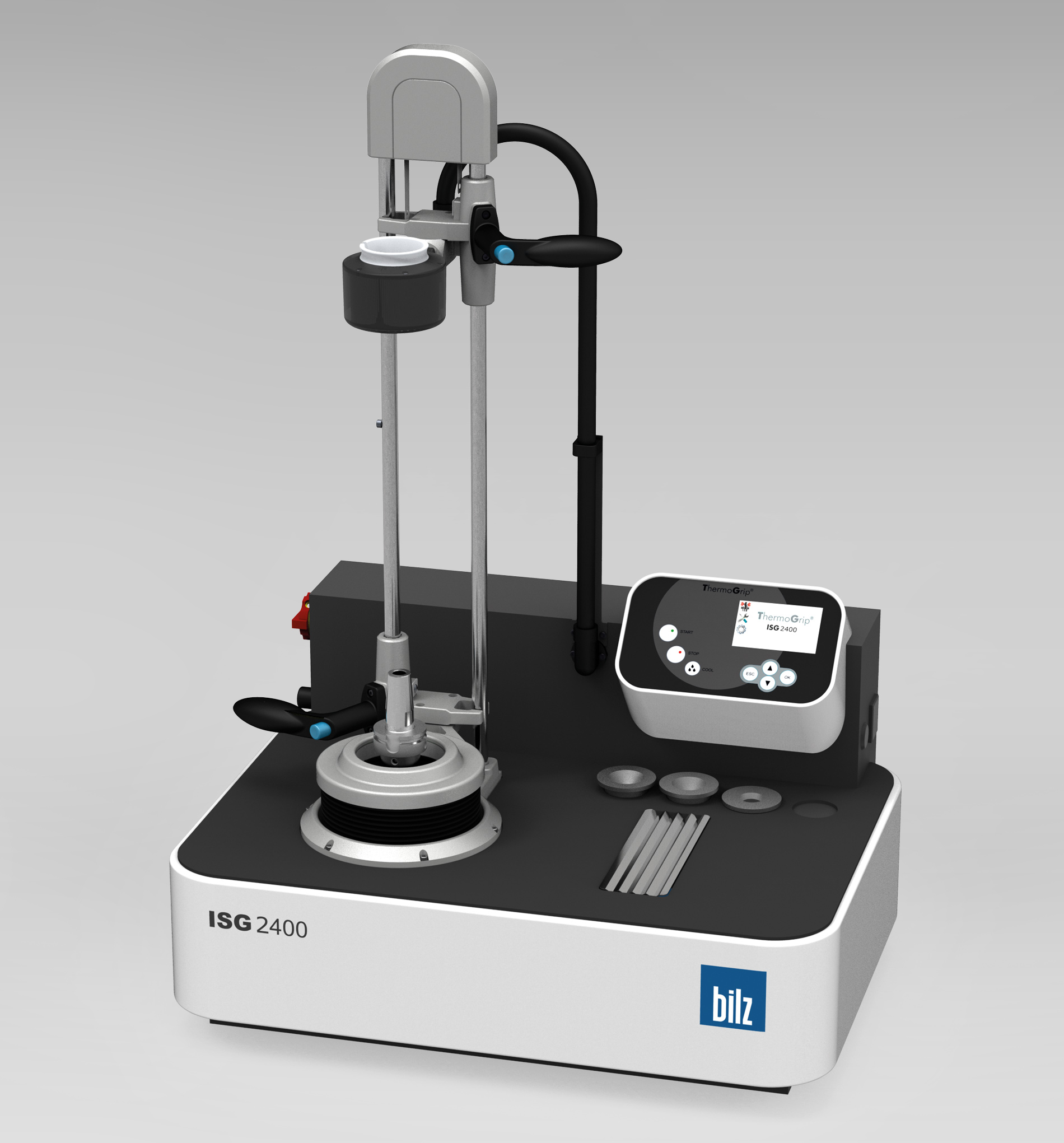

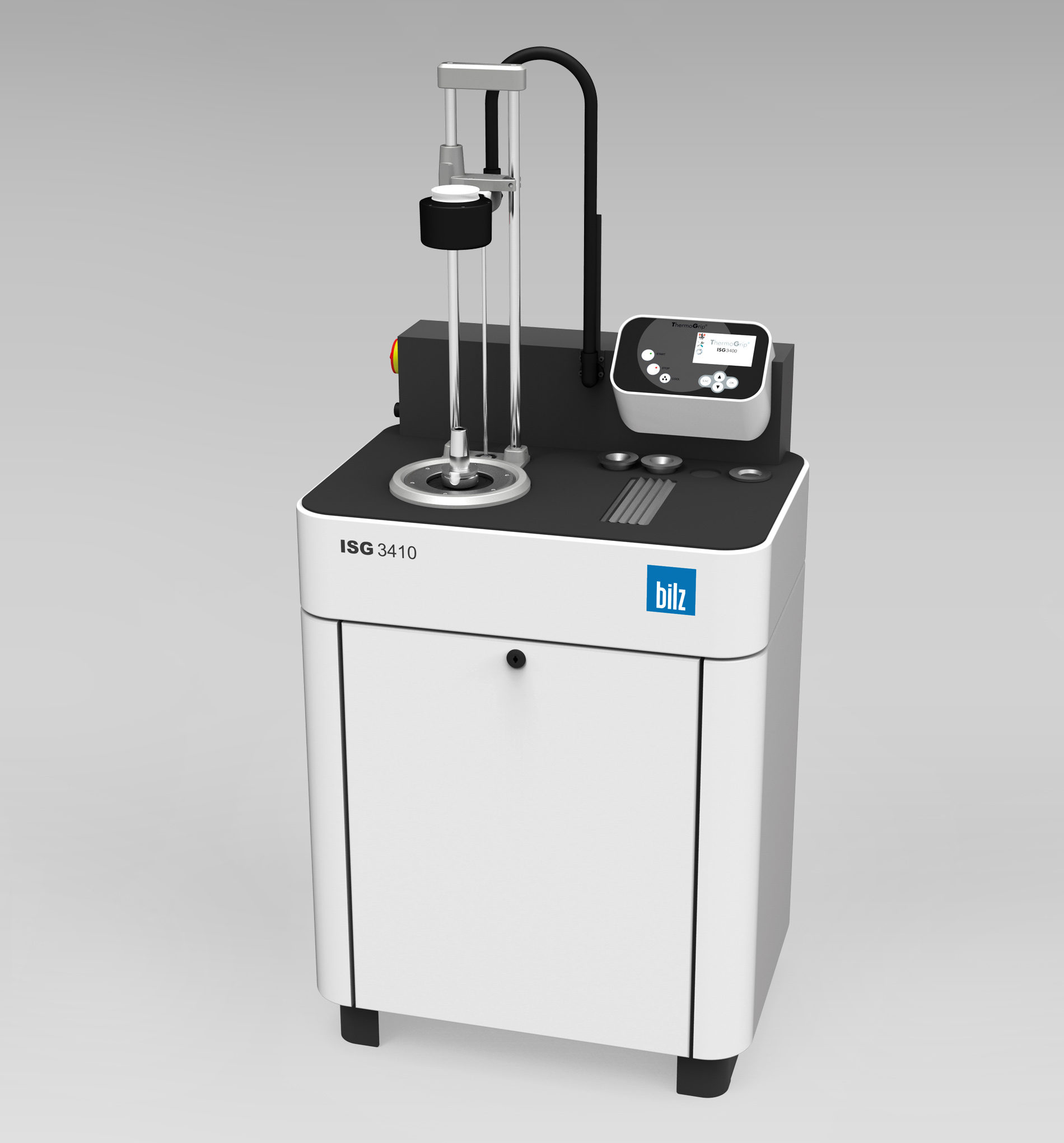

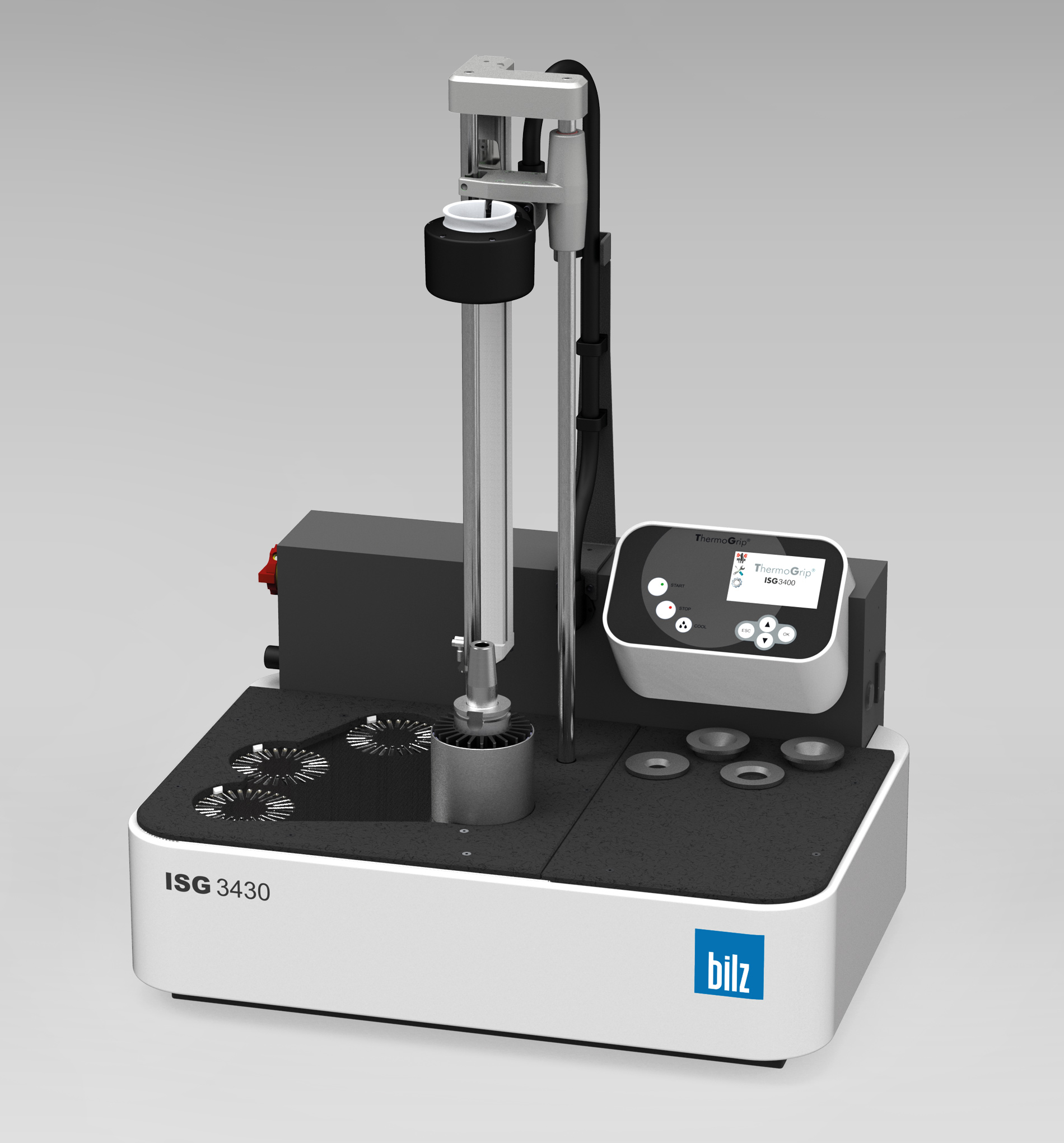

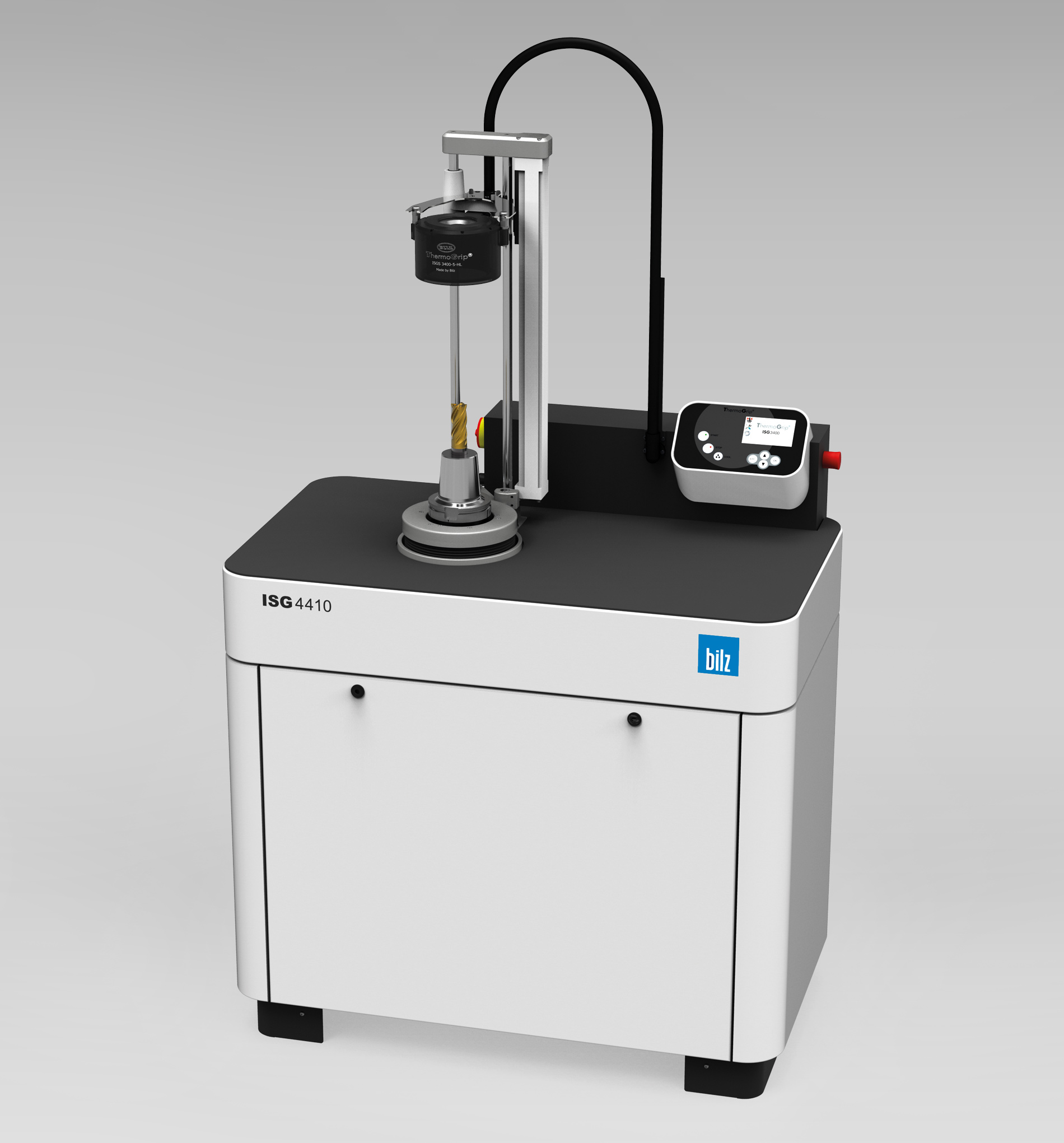

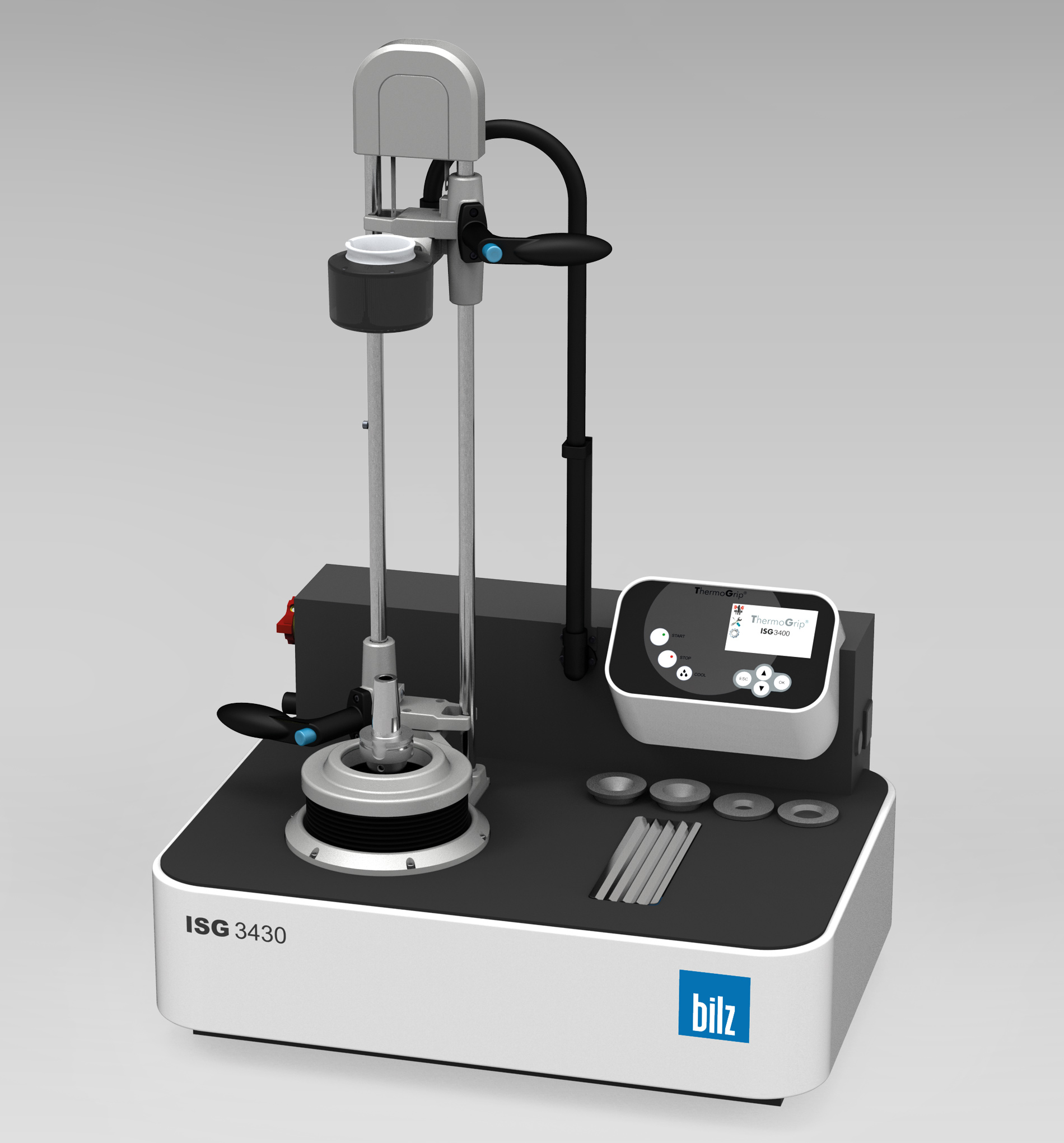

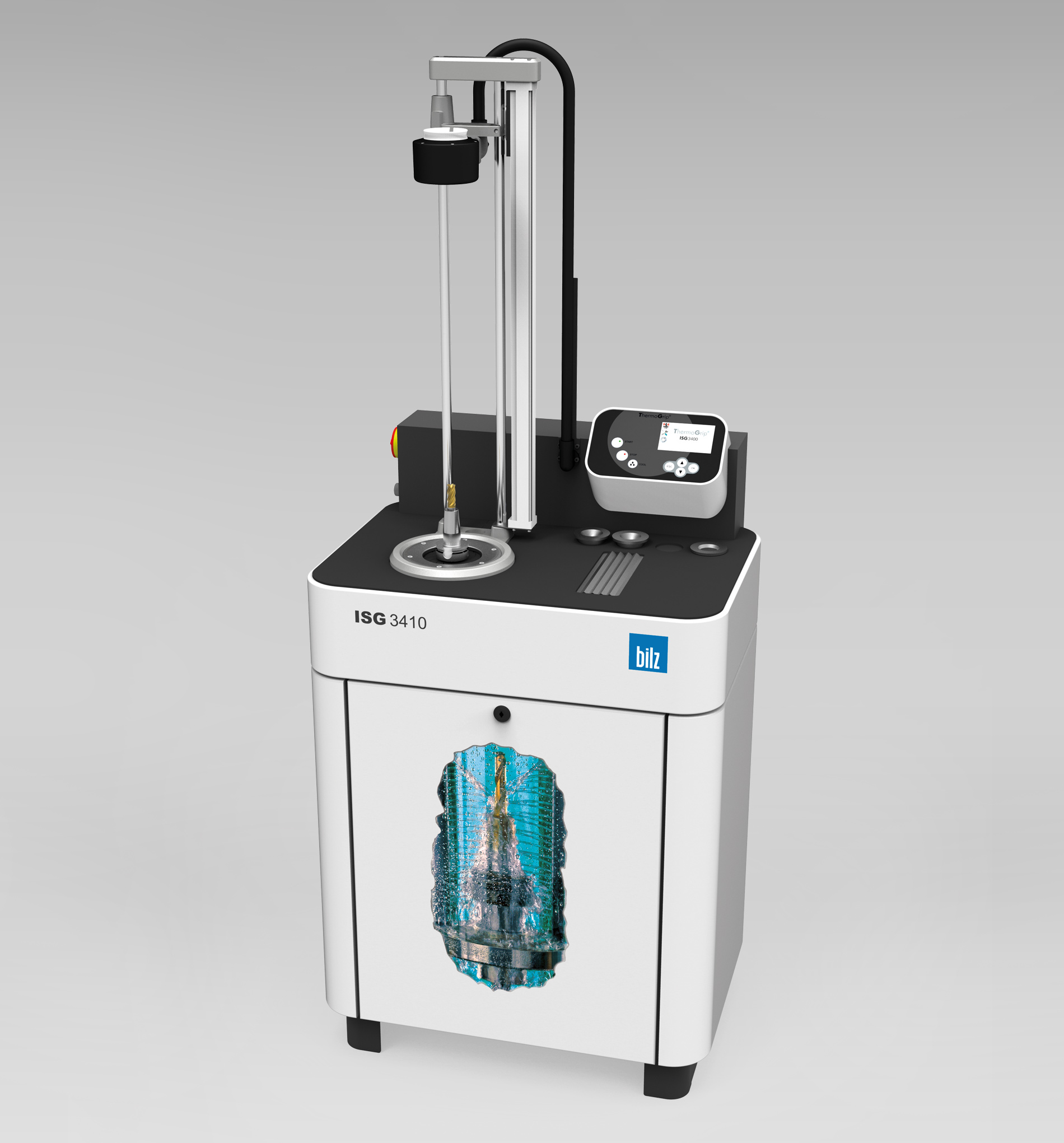

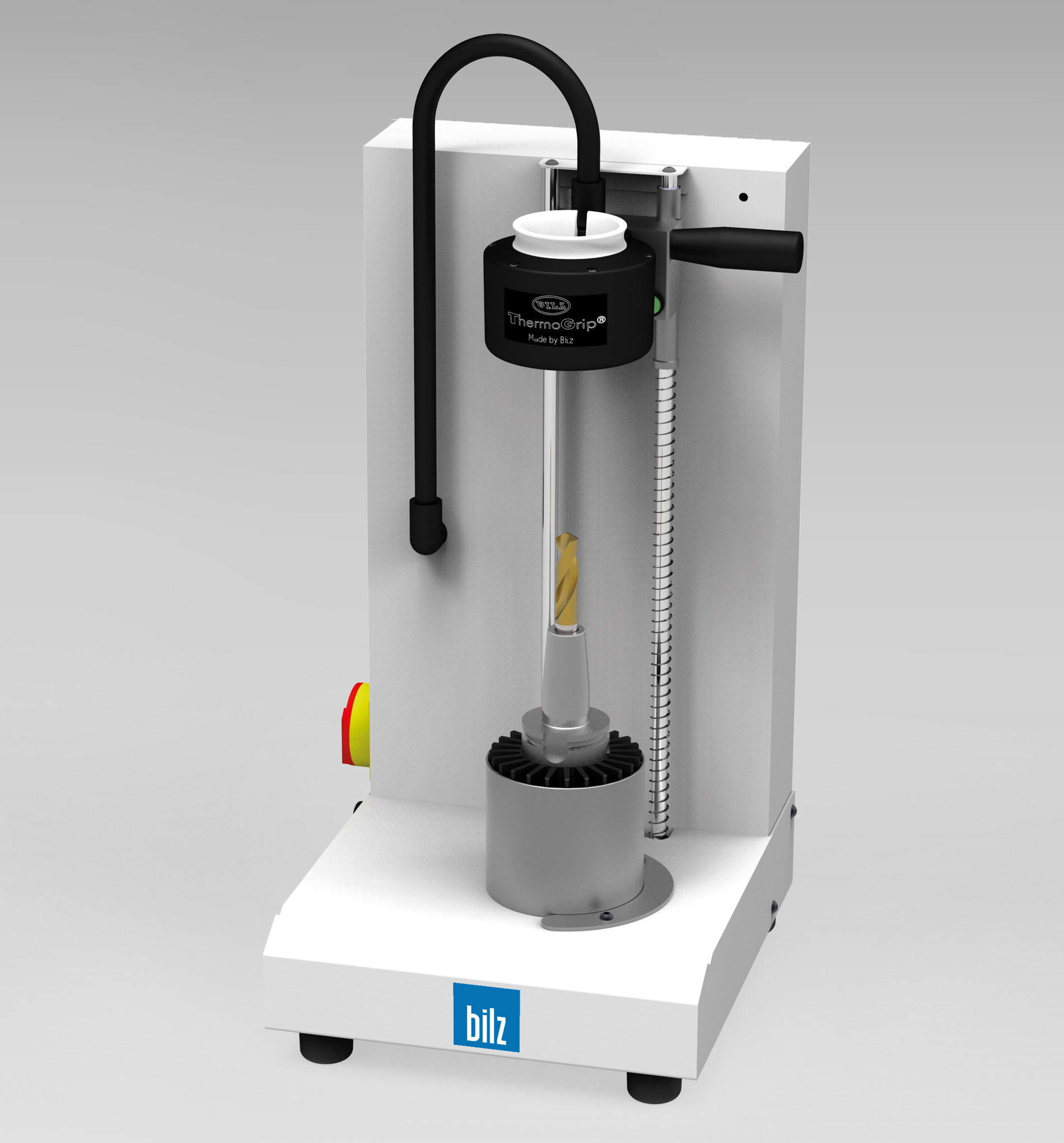

Description	MS502-P	ISG1000	ISG2431-TLK-8-FS	ISG2430-TLK-8-FS	ISG3430-TLK-11-FS	ISG3430-TLK-11-WS	ISG3430-TLK-15-WS	ISG3430-TLK4-11-WS	ISG3430-TLK4-15-WS	ISG2430-TWK-8-FS	ISG3430-TWK-11-FS	ISG3430-TWK-11-WS	ISG3430-TWK-15-WS	ISG2410-WK1-8-FS	ISG3410-WK1-11-FS	ISG3410-WK1-11-WS	ISG3410-WK4-11-WS	ISG3410-WK4-15-WS	ISG4410-WK-HL
User	Low Cost	Low Cost	Starter	Starter	Starter	Starter	Starter	Allrounder	Allrounder	Allrounder	Allrounder	Allrounder	Allrounder	Professional	Professional	Professional	Professional	Professional	Professional
Control panel	numeric	Button	numeric	graphic	graphic	graphic	graphic	graphic	graphic	graphic	graphic	graphic	graphic	graphic	graphic	graphic	graphic	graphic	graphic
Device type	Table top unit horizontal	Table top unit vertical	TLK / Table top unit	TLK / Table top unit	TLK / Table top unit	TLK / Table top unit	TLK / Table top unit	TLK4 / Table top unit	TLK4 / Table top unit	TWK / Table top unit	TWK / Table top unit	TWK / Table top unit	TWK / Table top unit	WK / Standing device	WK / Standing device	WK / Standing device	WK / Standing device	WK / Standing device	HL / Standing device
Electrical supply	EU 1 x 230V, 16A	EU 3 x 400V, 16A	EU 3 x 400V, 16A	EU 3 x 400V, 16A	EU 3 x 400V, 16A	EU 3 x 400V, 16A	USA 3 x 480V, 20A	EU 3 x 400V, 16A	USA 3 x 480V, 20A	EU 3 x 400V, 16A	EU 3 x 400V, 16A	EU 3 x 400V, 16A	USA 3 x 480V, 20A	EU 3 x 400V, 16A	EU 3 x 400V, 16A	EU 3 x 400V, 16A	EU 3 x 400V, 16A	USA 3 x 480V, 20A	EU 3 x 400V, 16A

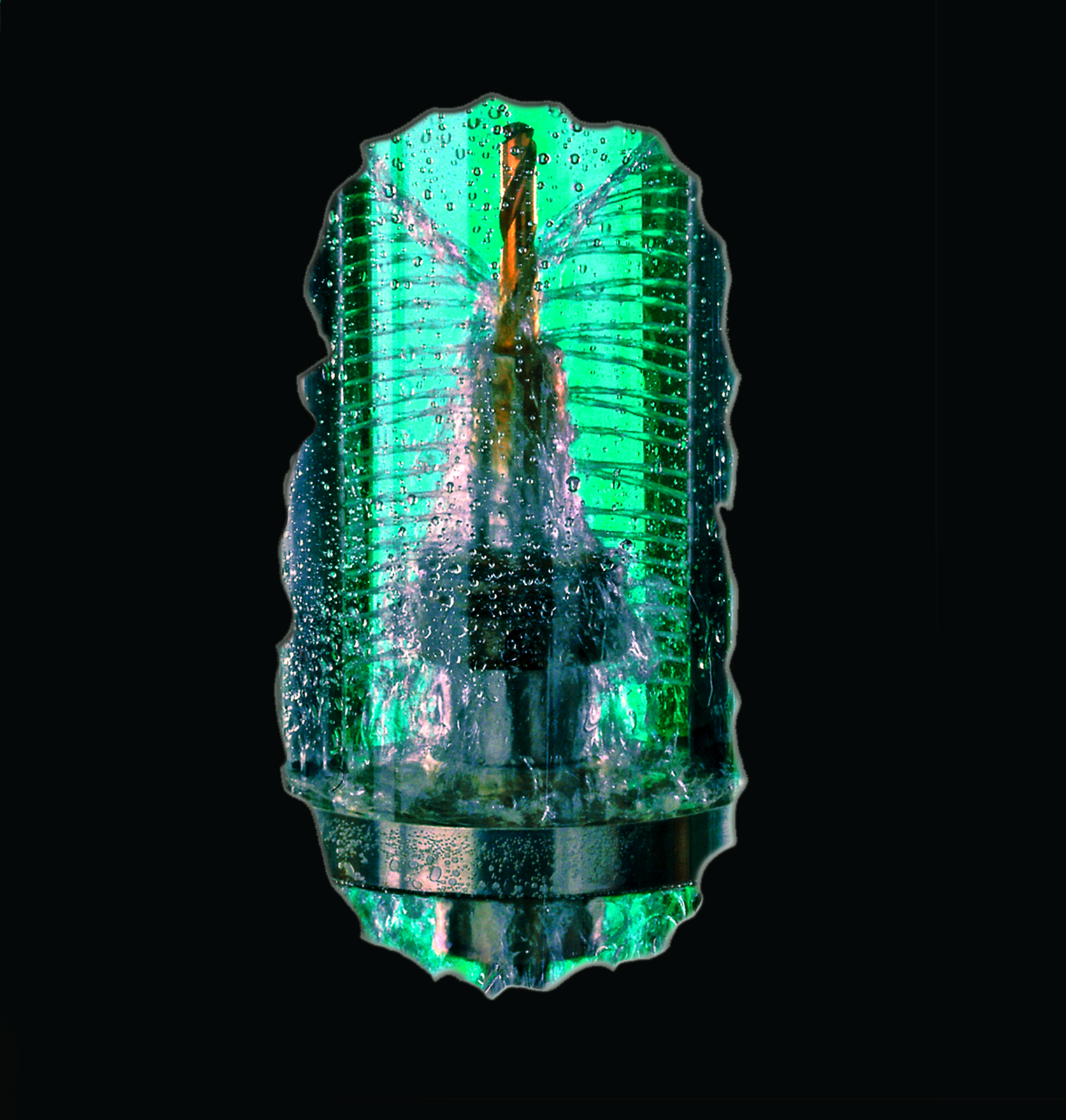

Type of cooling	Air optional	Air optional	Air	Air	Air	Air	Air	4 x Air	4 x Air	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling
Cooling length			200	200	200	200	200	200	200	160	160	160	160	200	200	200	400	400	350
Max tool length	160	290	450	450	450	450	450	450	450	500	500	500	500	400	400	400	680	680	500
Max. Intake	HSK-A63 / SK40	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A100 / SK50	HSK-A125 / SK50
Clamping range	3 - 16 mm # 1/8" - 5/8"	3 - 16 mm # 1/8" - 5/8"	3 - 20 mm # 1/8" - 3/4"	3 - 20 mm # 1/8" - 3/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 20 mm # 1/8" - 3/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 20 mm # 1/8" - 3/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 32 mm # 1/8" - 1 1/4"	3 - 50 mm # 1/8" - 2"	3 - 50 mm # 1/8" - 2"	3 - 50 mm # 1/8" - 2"

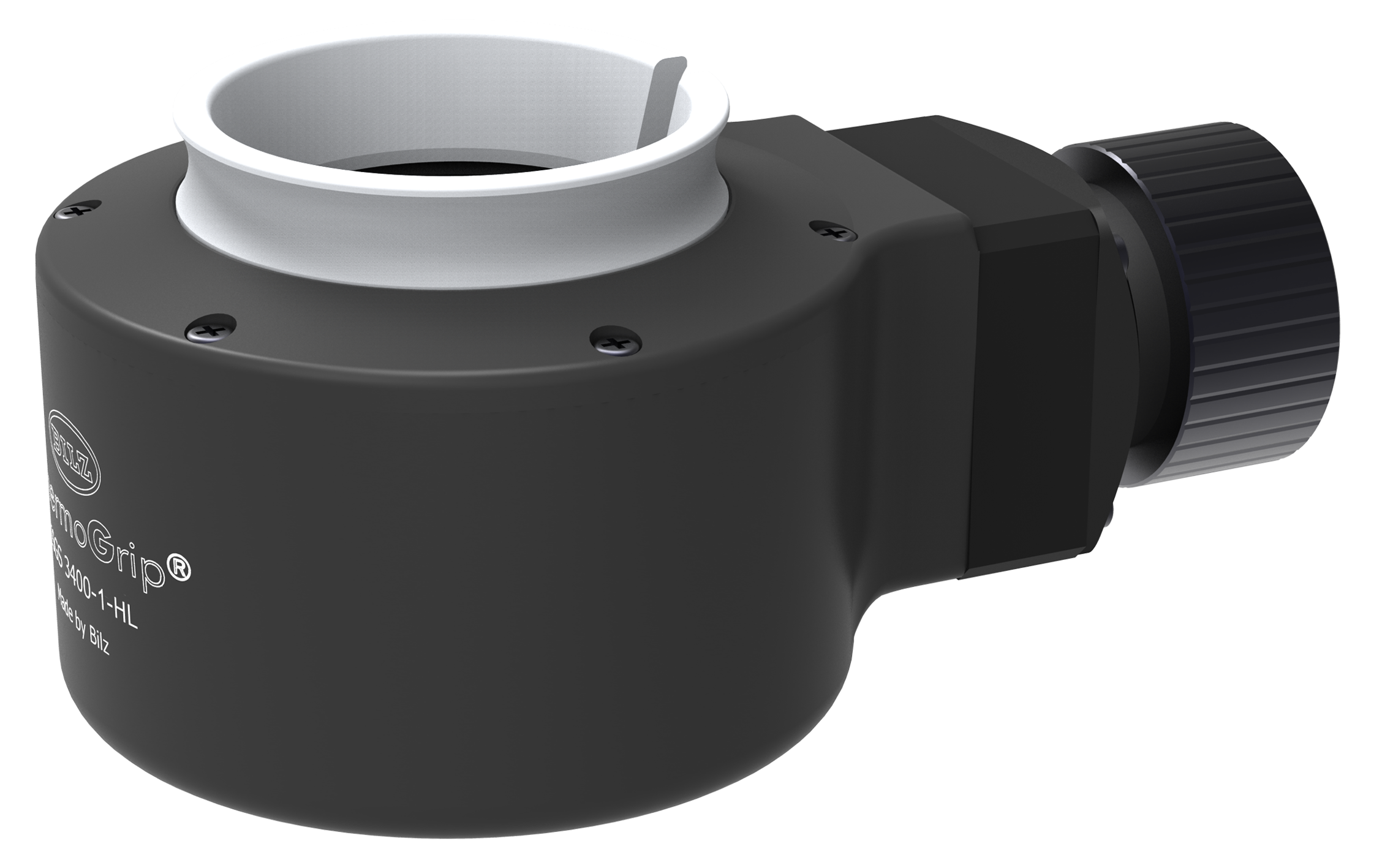

Fixed or interchangeable coil	fixed	fixed	fixed	fixed	fixed	changeable	changeable	changeable	changeable	fixed	fixed	changeable	changeable	fixed	fixed	changeable	changeable	changeable	changeable

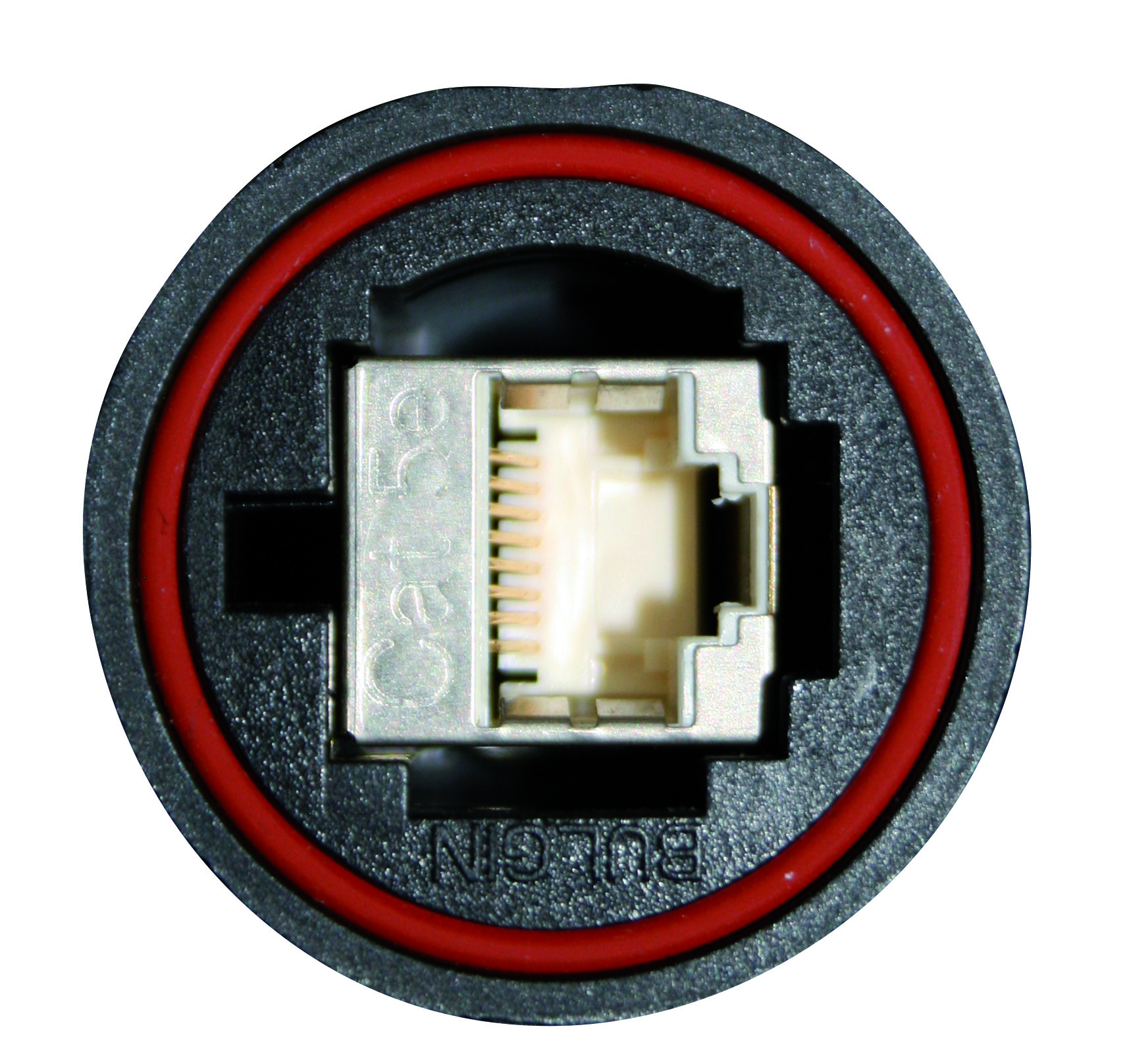

Options	+ Show options - - - - - - - - - - - - - - -	+ Show options - - - - - - - - - - - - - - -	+ Show options - Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) - - - - - - - - - - - - -	+ Show options - Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) - - - - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options - Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) - - - - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) - - - - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) - - - - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) Maintenance Unit? Includes a lockable stop valve, micro filter with water trap and manometer. With the stop valve the pressure of the unit can be switched off. During varying or bad pressure quality, the microfilter guarantees a reliable operation of the shrink unit. (IdNr.: 5097959) Pick-by-Light (IdNr.: 5101175) - - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) Maintenance Unit? Includes a lockable stop valve, micro filter with water trap and manometer. With the stop valve the pressure of the unit can be switched off. During varying or bad pressure quality, the microfilter guarantees a reliable operation of the shrink unit. (IdNr.: 5097959) Pick-by-Light (IdNr.: 5101175) - - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options - Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) - Pick-by-Light (IdNr.: 5101175) Corian Cover? High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters. (IdNr.: 5106207) - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options - Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) - Pick-by-Light (IdNr.: 5101175) Corian Cover? High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters. (IdNr.: 5106207) - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) - Pick-by-Light (IdNr.: 5101175) Corian Cover? High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters. (IdNr.: 5106207) - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) - Pick-by-Light (IdNr.: 5101175) Corian Cover? High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters. (IdNr.: 5106207) - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) -	+ Show options - Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) Maintenance Unit? Includes a lockable stop valve, micro filter with water trap and manometer. With the stop valve the pressure of the unit can be switched off. During varying or bad pressure quality, the microfilter guarantees a reliable operation of the shrink unit. (IdNr.: 5097959) Pick-by-Light (IdNr.: 5101175) Corian Cover? High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters. (IdNr.: 5106207) Steam extraction unit? Lateral steam extraction, separate 230V connection; suction nozzle positioned manually; suction capacity adjustable; replaceable filter unit. (IdNr.: 5105890) XL coolant tank? The XL tank replaces the standard tank and increases the coolant volume by 1/3 (IdNr.: 5109064) BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) Active cooling (IdNr.: 0000000)	+ Show options - Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) Maintenance Unit? Includes a lockable stop valve, micro filter with water trap and manometer. With the stop valve the pressure of the unit can be switched off. During varying or bad pressure quality, the microfilter guarantees a reliable operation of the shrink unit. (IdNr.: 5097959) Pick-by-Light (IdNr.: 5101175) Corian Cover? High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters. (IdNr.: 5106207) Steam extraction unit? Lateral steam extraction, separate 230V connection; suction nozzle positioned manually; suction capacity adjustable; replaceable filter unit. (IdNr.: 5105890) XL coolant tank? The XL tank replaces the standard tank and increases the coolant volume by 1/3 (IdNr.: 5109064) BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) Active cooling (IdNr.: 0000000)	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) Maintenance Unit? Includes a lockable stop valve, micro filter with water trap and manometer. With the stop valve the pressure of the unit can be switched off. During varying or bad pressure quality, the microfilter guarantees a reliable operation of the shrink unit. (IdNr.: 5097959) Pick-by-Light (IdNr.: 5101175) Corian Cover? High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters. (IdNr.: 5106207) Steam extraction unit? Lateral steam extraction, separate 230V connection; suction nozzle positioned manually; suction capacity adjustable; replaceable filter unit. (IdNr.: 5105890) XL coolant tank? The XL tank replaces the standard tank and increases the coolant volume by 1/3 (IdNr.: 5109064) BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) Active cooling (IdNr.: 0000000)	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) Maintenance Unit? Includes a lockable stop valve, micro filter with water trap and manometer. With the stop valve the pressure of the unit can be switched off. During varying or bad pressure quality, the microfilter guarantees a reliable operation of the shrink unit. (IdNr.: 5097959) Pick-by-Light (IdNr.: 5101175) Corian Cover? High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters. (IdNr.: 5106207) Steam extraction unit? Lateral steam extraction, separate 230V connection; suction nozzle positioned manually; suction capacity adjustable; replaceable filter unit. (IdNr.: 5105890) XL coolant tank? The XL tank replaces the standard tank and increases the coolant volume by 1/3 (IdNr.: 5109064) BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) Active cooling (IdNr.: 0000000)	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) Maintenance Unit? Includes a lockable stop valve, micro filter with water trap and manometer. With the stop valve the pressure of the unit can be switched off. During varying or bad pressure quality, the microfilter guarantees a reliable operation of the shrink unit. (IdNr.: 5097959) Pick-by-Light (IdNr.: 5101175) Corian Cover? High quality Corian cover instead of the standard rubber mat. Placement positions for 4 pole discs and 2 tool adapters. (IdNr.: 5106207) Steam extraction unit? Lateral steam extraction, separate 230V connection; suction nozzle positioned manually; suction capacity adjustable; replaceable filter unit. (IdNr.: 5105890) XL coolant tank? The XL tank replaces the standard tank and increases the coolant volume by 1/3 (IdNr.: 5109064) BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) Active cooling (IdNr.: 0000000)	+ Show options Invers-Function? Additional kit „Inverse“ - Application: Cutting edge of the tool > tool shank diameter, Suitable for inverse shrinking up to machine interface HSK-A63, Induction coil only possible in combination with the quick change coil technology (...WS...) (IdNr.: 0000000) Clipboard? Tray for documents up to DIN A4, e.g. tool plans, instructions (IdNr.: 5104885) Maintenance Unit? Includes a lockable stop valve, micro filter with water trap and manometer. With the stop valve the pressure of the unit can be switched off. During varying or bad pressure quality, the microfilter guarantees a reliable operation of the shrink unit. (IdNr.: 5097959) - - - - BILZ Chip Reader ? Bilz RFID evaluation unit with handheld chipreader and holder (IdNr.: 5097703) Balluff BIS-C Chip Reader? Balluff BIS-C evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5108649) Balluff BIS-M Chip Reader? BIS-M evaluation unit with handheld chipreader and holder * Option on request, additional clarification necessary (IdNr.: 5095433) Tool Memory Editor (TME)? PC program with which customer-specific tool designations and the corresponding shrink parameters can be set up. (IdNr.: 5096091) USB Interface? Connection of the USB-connector on the distributor board to the plug and socket on the generator box (IdNr.: 5082290) Ethernet Interface? Connection of the LAN-connector on the control panel board to the plug and socket on the generator box (RJ45) (IdNr.: 5082294) Emergency stop (IdNr.: 5115964) Active cooling (IdNr.: 0000000)
