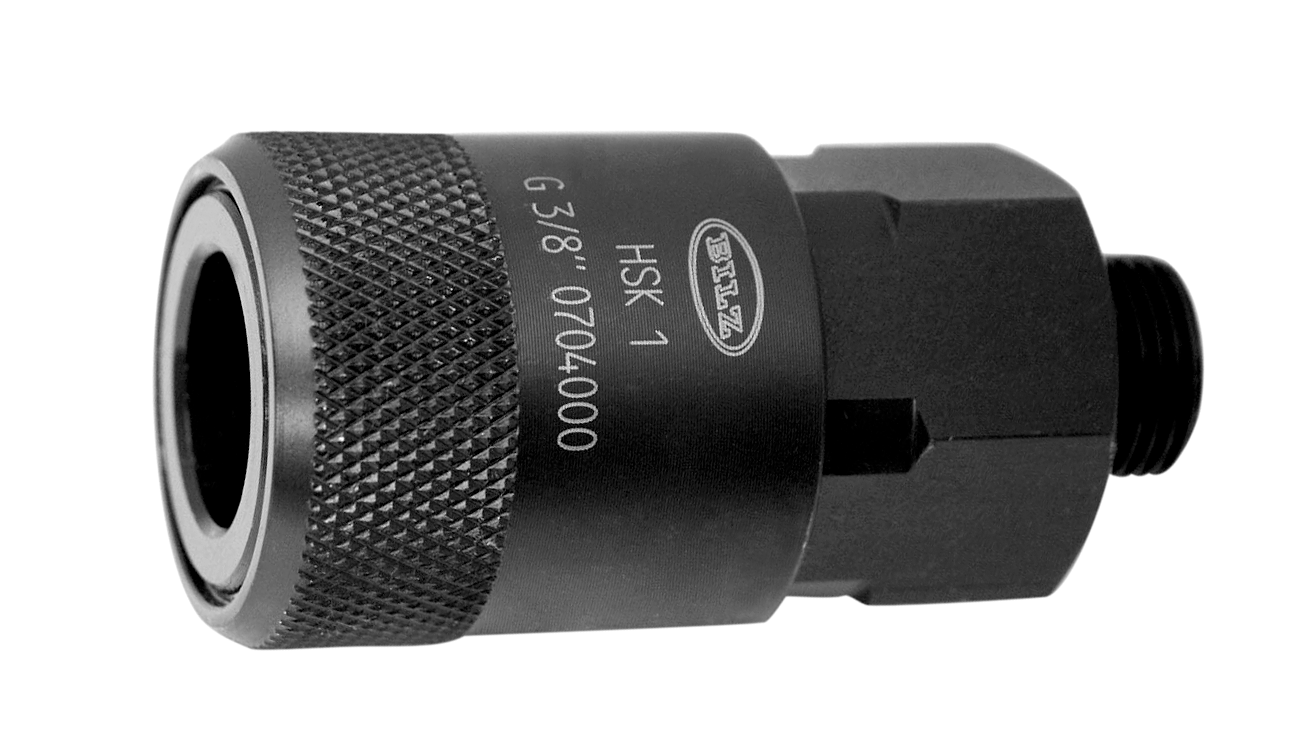

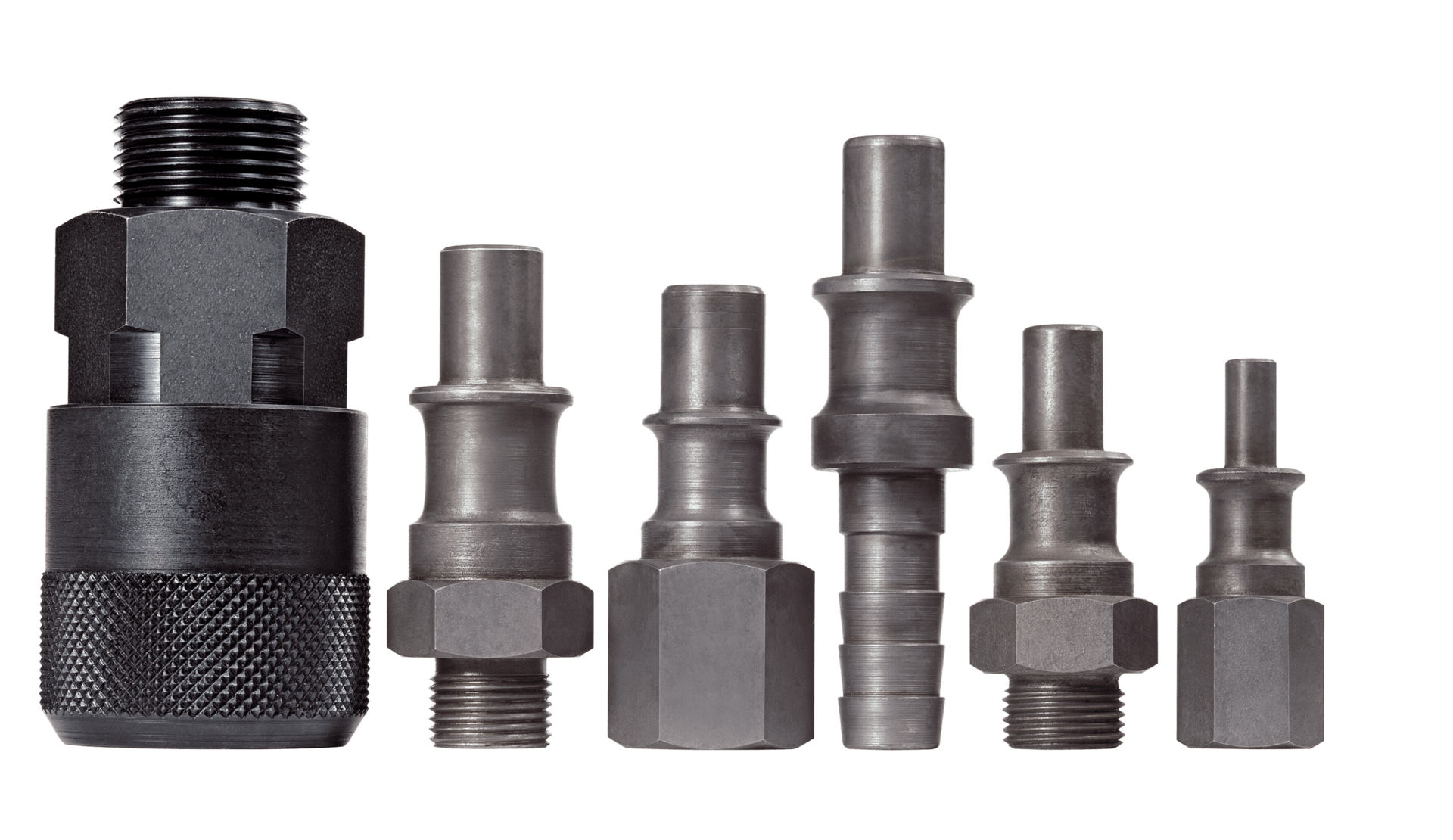

Compressed Air Couplings

Hermetikus Air Pressure

Application

  • Equipment for air pressure units
  • Connection of tubes
  • Connection of air pressure tools
  • Safe and quick coupling and decoupling of the hose by a safety lock

Coupling
The valve only opens if the socket of the coupling is locked in place.

Decoupling
The socket can only be taken out of the coupling after the connection had been completely deaerated.

Technical data

  • Marginal pressure losses due to a favourable air flow
  • Pressures up to 50 bar
  • Temperatures up to 80° C, in special designs up to 200° C

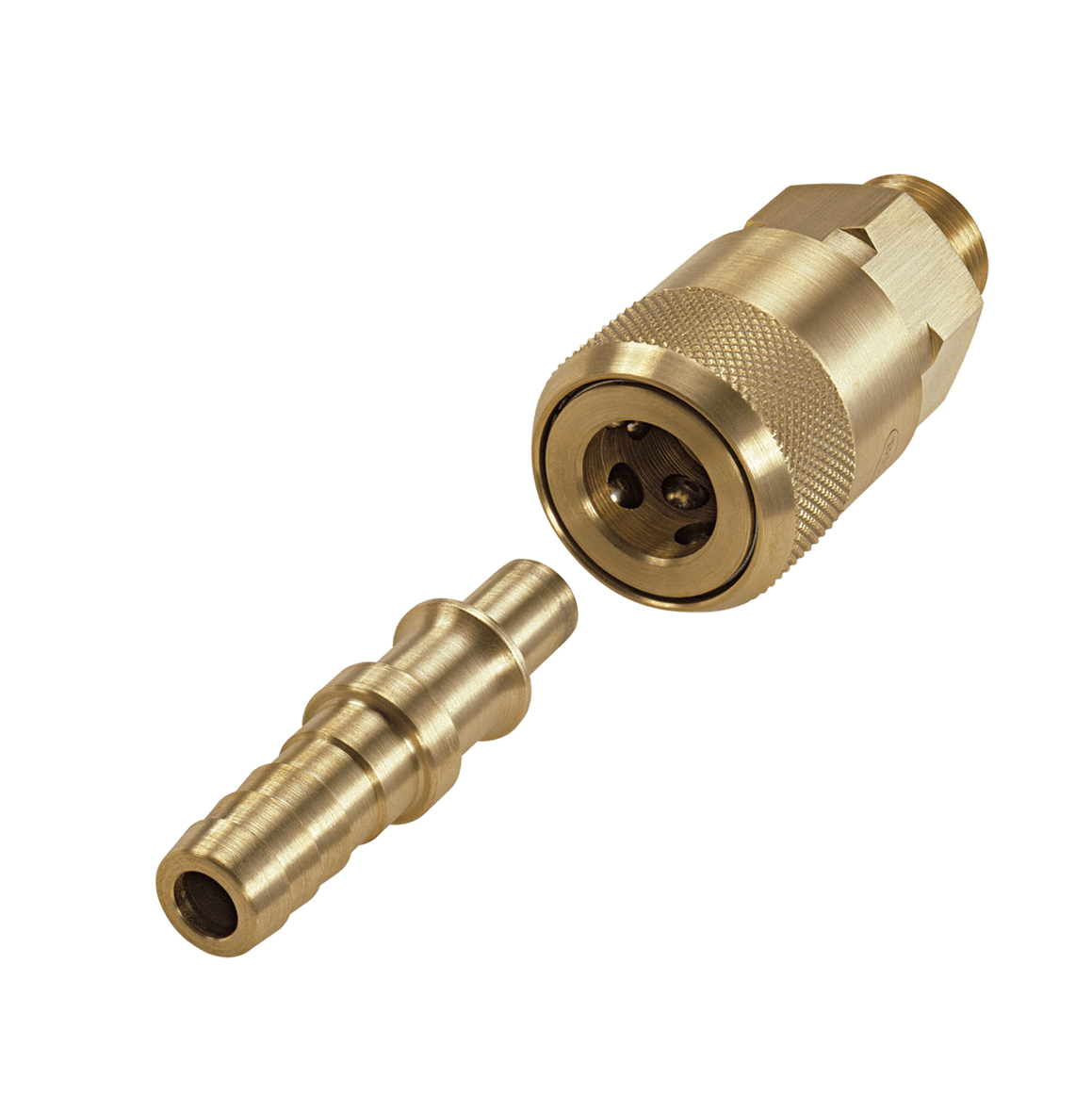

  • Available in steel and brass design
  • The couplings type HSKE have an enlarged flow diameter and are particularly suitable for mounting of air pressure tools

Accessories

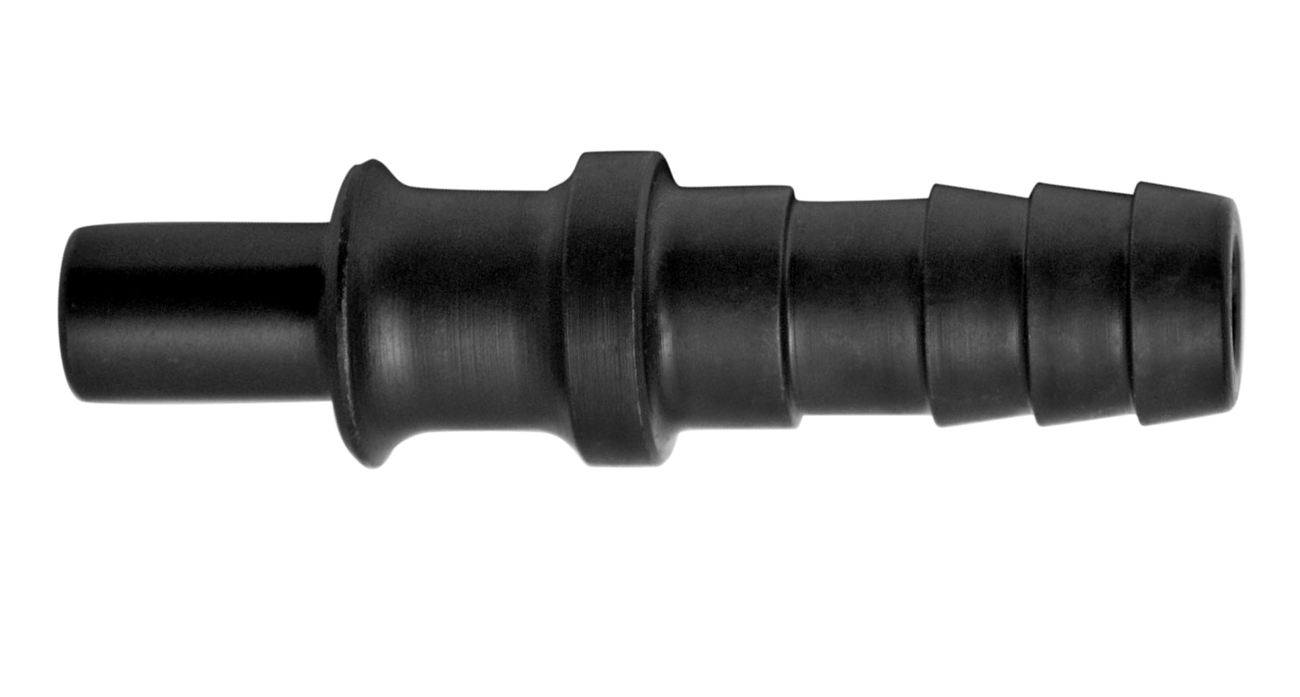

  • Hose sockets for hose connection, connecting sockets with external and internal thread for air pressure units and fixtures, connecting sockets for couplings

Air Pressure Valves and Air Pressure Guns

Ergonomic design, low weight for easy handling easily adjustable air flow

Accessories for Valves and Air Pressure Guns

  • Extended nozzles, protection nozzles and noise protection nozzles can be screwed on the valves and guns instead of the normal blast nozzle
  • Additional protection shields can be used as splash guards
