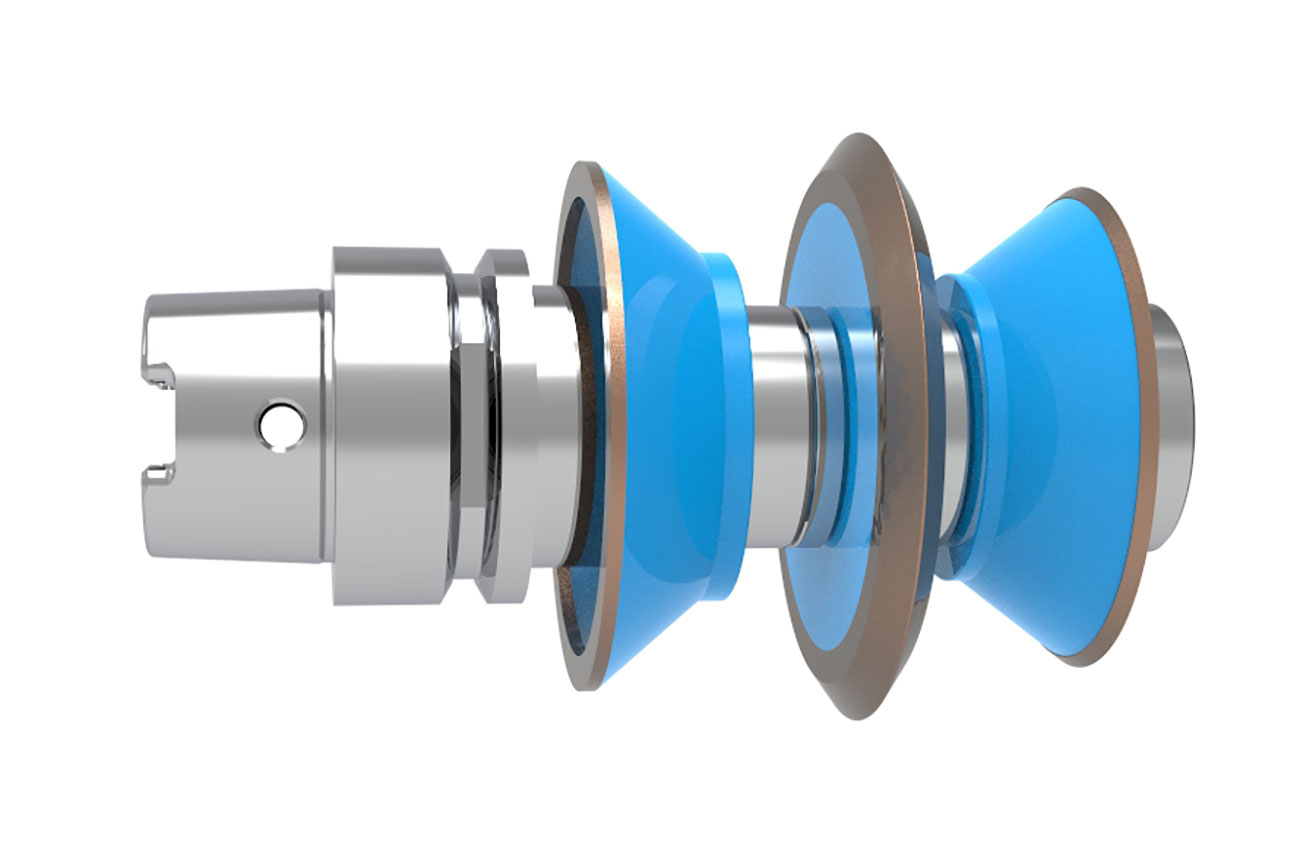

Grinding Wheel Adapter

Application

Anwendung: Wheel adapters are suitable for tool grinding machines like ANCA, DECKEL/ISOG,
HAAS, HAWEMA, REINECKER, ROLLOMATIC, SAACKE / VOLLMER, SCHÜTTE, SMP,
STRAUSAK, TTB, WALTER, WIDMA, ZARO
Machine type: Tool grinding machines

Features

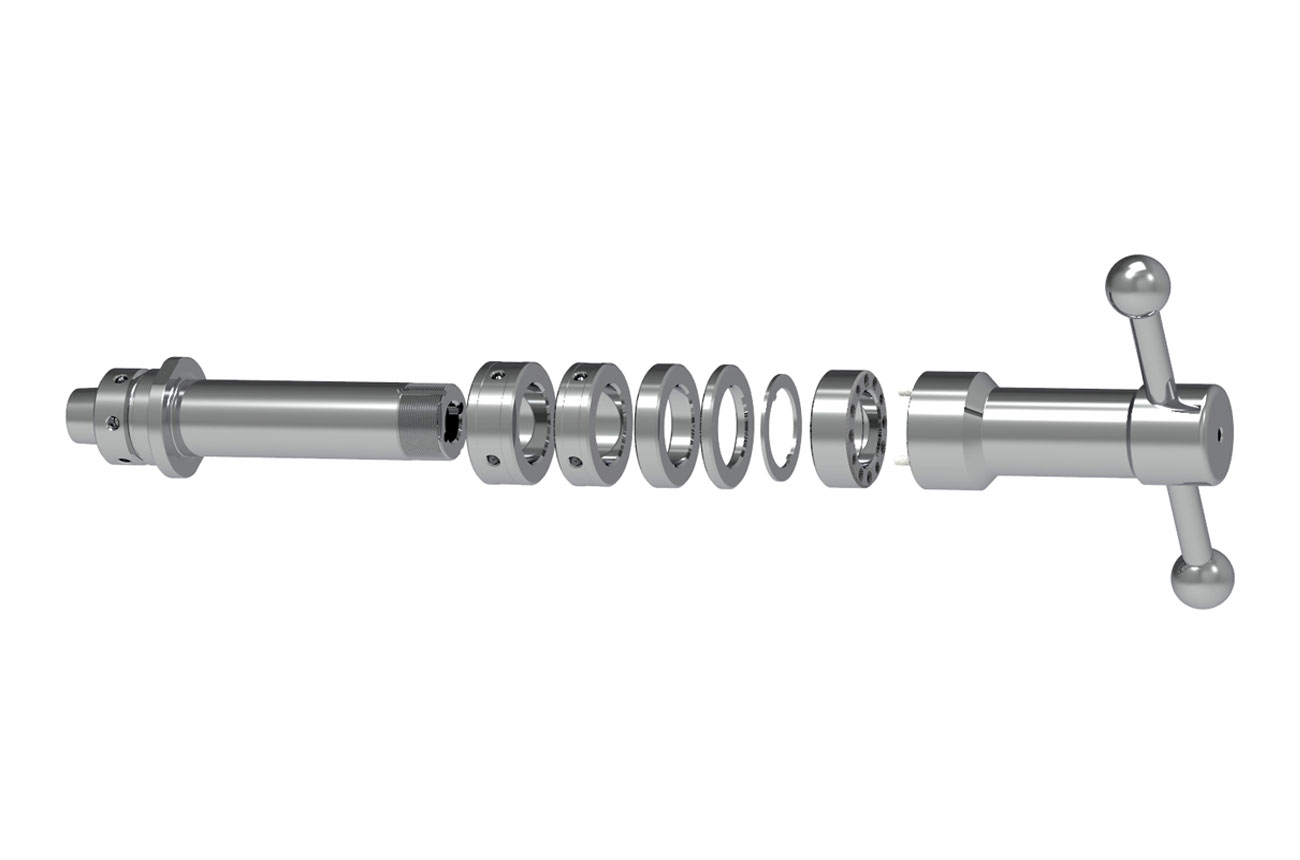

  • Wheel adapters will be supplied with ring set (spacers),lock washer, clamping nut (with
    balancing holes as optional) and clamping nut wrench (optional)
  • Wheel adapters can be offered with different shanks (back end) like
    HSK-F40, HSK-F50, HSK-E40,HSK-E50, HSK-C50, HSK-50, HSK-F63,
    BT30, BT30 (Internal taper), BT40, BT50
  • Wheel adapters can also be customized as per your requirement

Advantages

  • Our high precision wheel adapters can be offered with different length & diameter

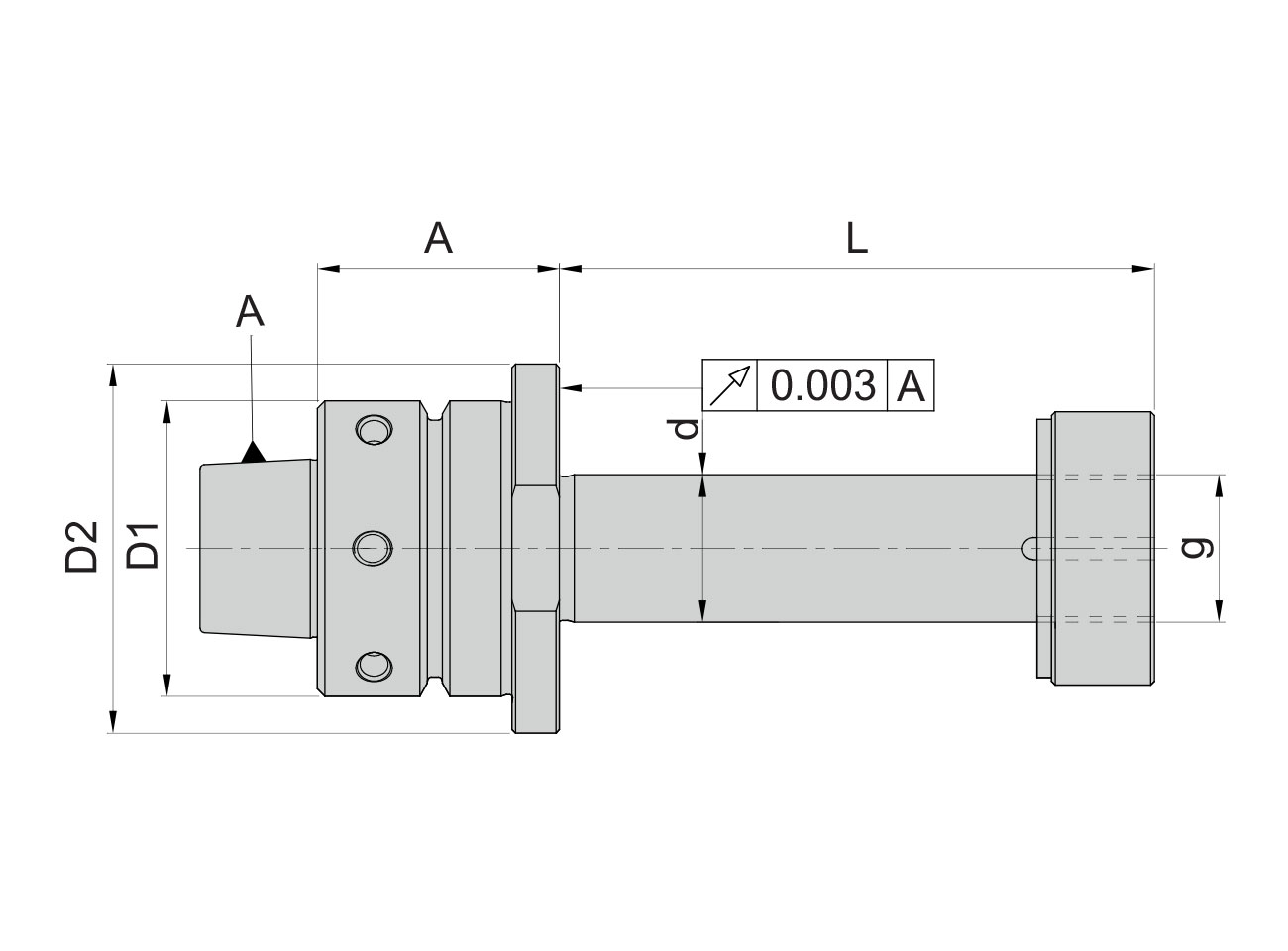

  • Run-out on adapters are maintained within 3 micron
  • Wheel adapters are balanced to G2.5 at 25000 RPM and with balancing holes
