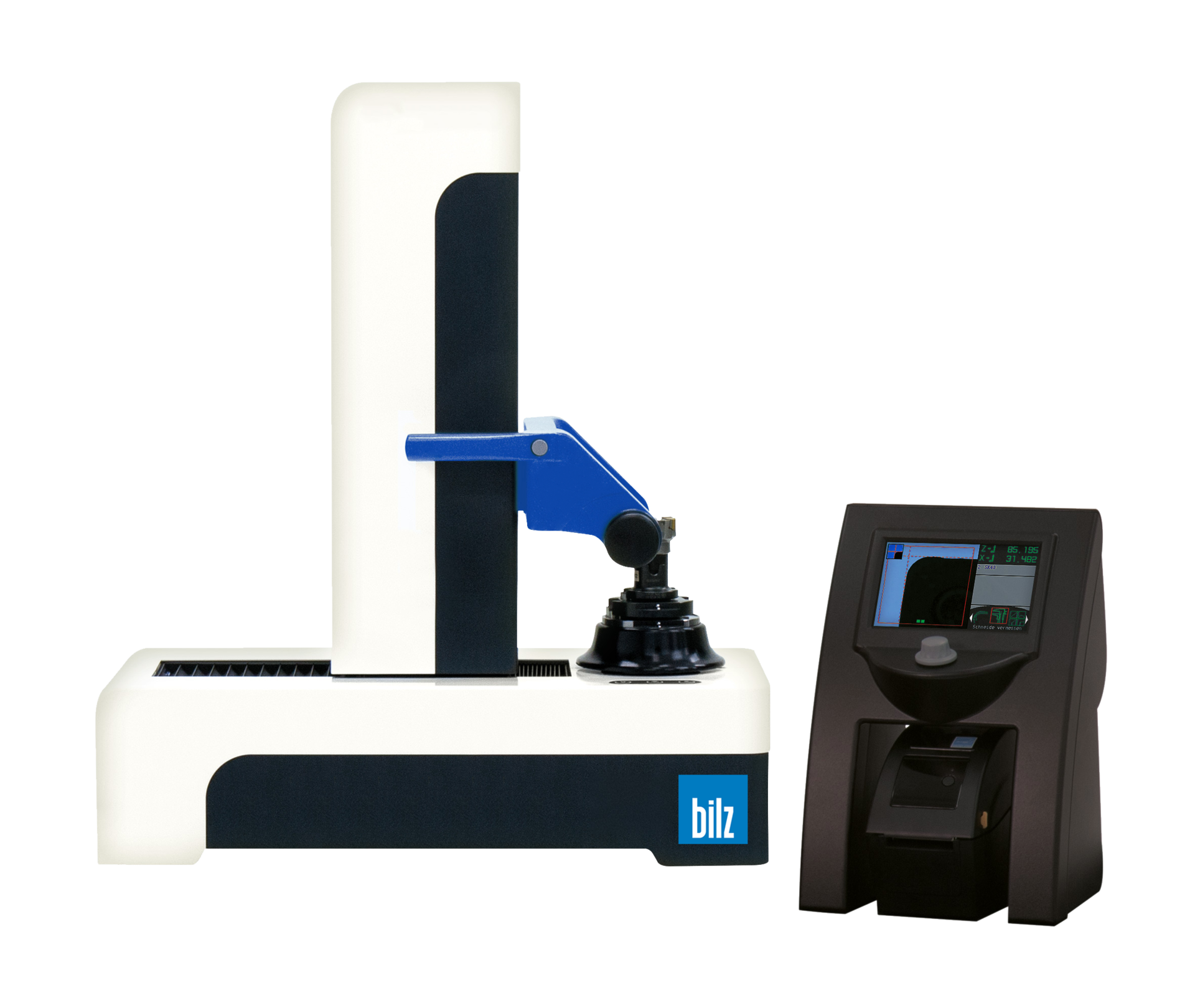

BTC I STARTER

TABLE VERSION

Application

Application: Starter unit


Advantages

  • Quick start-up with minimal training and easy operation
  • High precision spindle SK50 with integreted calibration balls
  • Quickly measure, preset, and inspect tools (length and diameter)
  • Easy set up of tool contours
  • Various measuring programs for easy measurement at the cutting edge of values such as concentricity and axial runout
  • Fast and simple label printing of measuring results (optional)
  • One-handed operation for quick and simultaneous positioning of the Z and X axis

 Options

  • Inspection of the cutting edge (12 times zoom on the cutting edge in incident light)
  • Projector function
  • Software function for printing thermal labels
  • Tool management
  • Compass needle
  • Pneumatic spindle indexing and brake
  • Tool location spindle SK50 vacuum
  • Adapter and utensil tray (only available with undertable)
  • Adapters SK, HSK, Capto, VDI
  • and many more
  • Label Printer
  • Base Table
Presetting Unit BTC I - technical dimensions

Designation

Measuring range X

Measuring range Z

End gauge

BTC I Starter 3235

 320 mm

 350 mm

 0 mm

BTC I Starter 4242

 420 mm

420 mm

 100 mm

BTC I Starter 4260

 420 mm

 600 mm

 100 mm
