Modular measuring system in the construction kit for process monitoring

Field of application

Application: Process monitoring in the cutting process
Machine type: Special, turning and NC machines

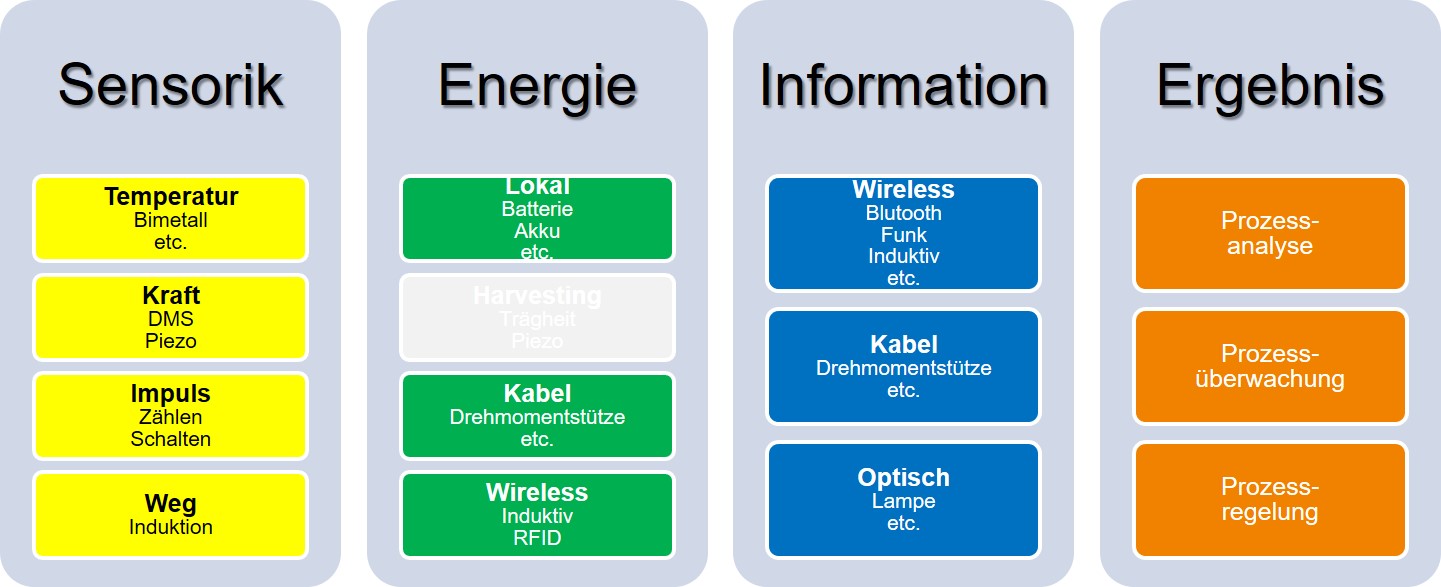

  • Bilz measuring system enables process monitoring
  • System can be adapted to the requirements of the cutting process
  • Process monitoring can be integrated into the machine tool retrospectively as a retrofit project

Practical example

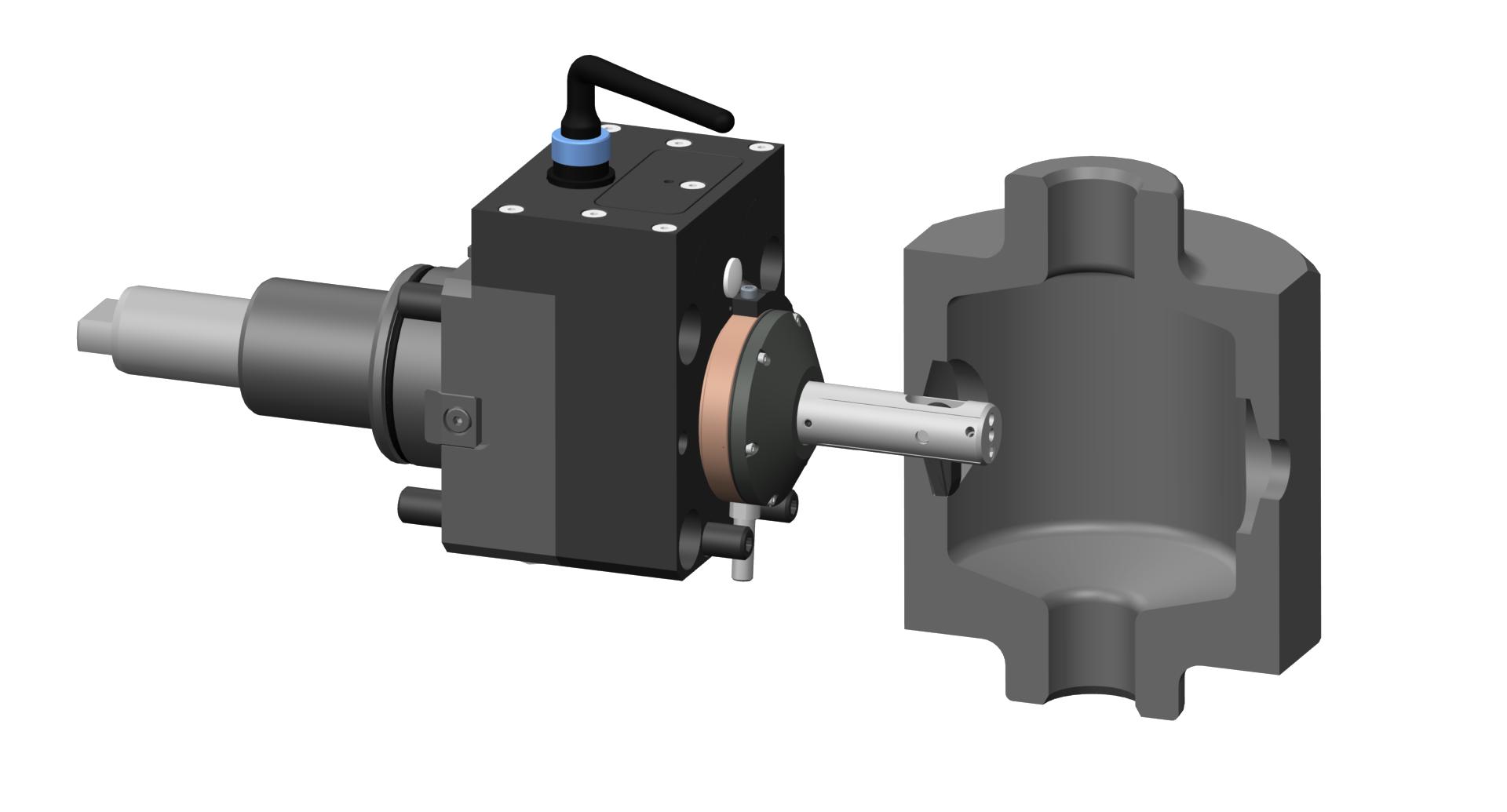

Requirement: Avoid tool breakage and tool damage on a reverse counterbore.

  • After processing possible chips in the cutting area
  • Failure to fully collapse the cutting edge leads to overhang to shank
  • Collision during extension -> Damage to the workpiece and destruction of the cutting edge

Project scope of Bilz:

  • Configuration of the electronic modules in the tool

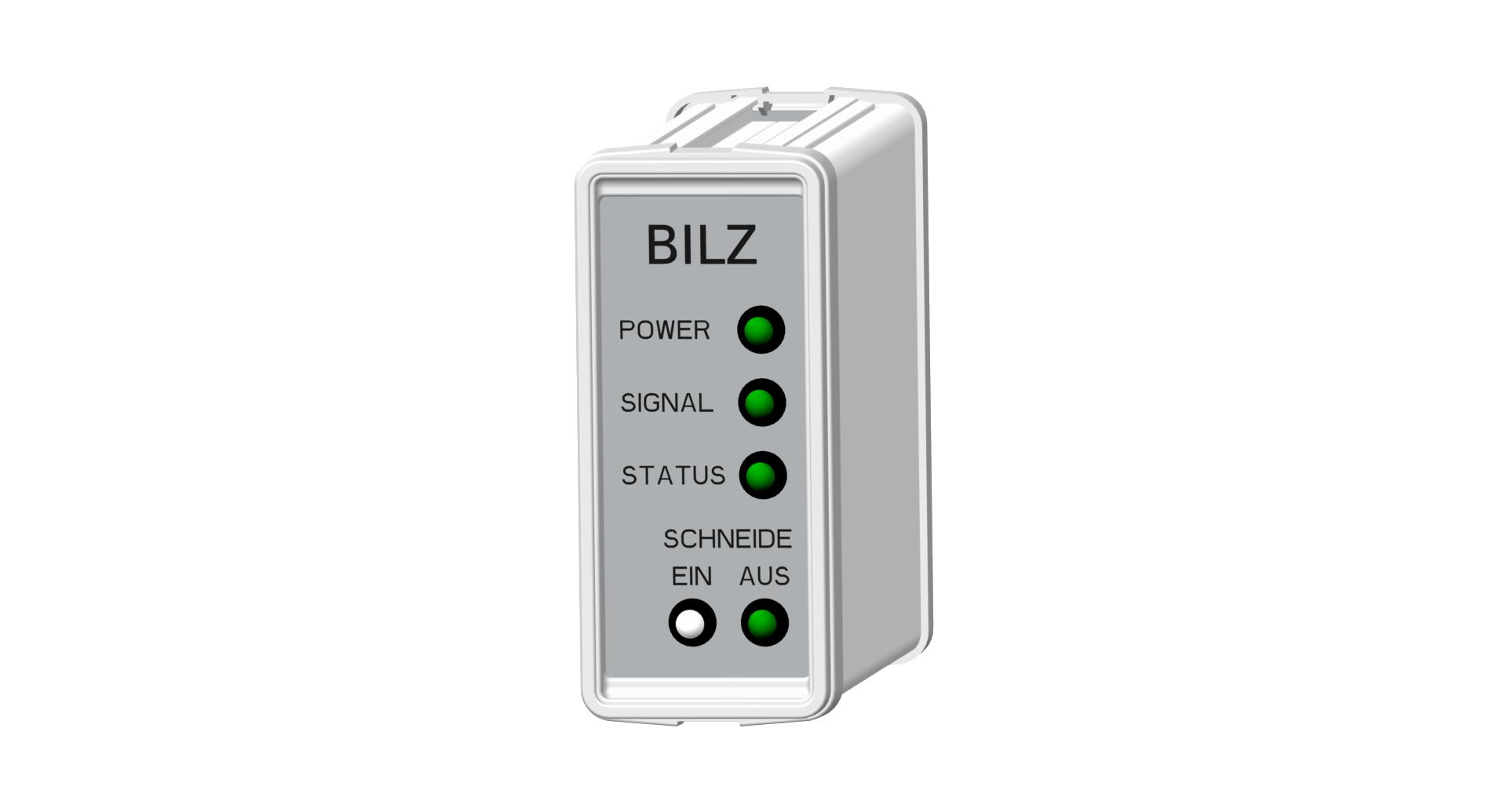

  • Transmission of the switching state to the machine
  • Connection to the PLC (PLC) in the machine
