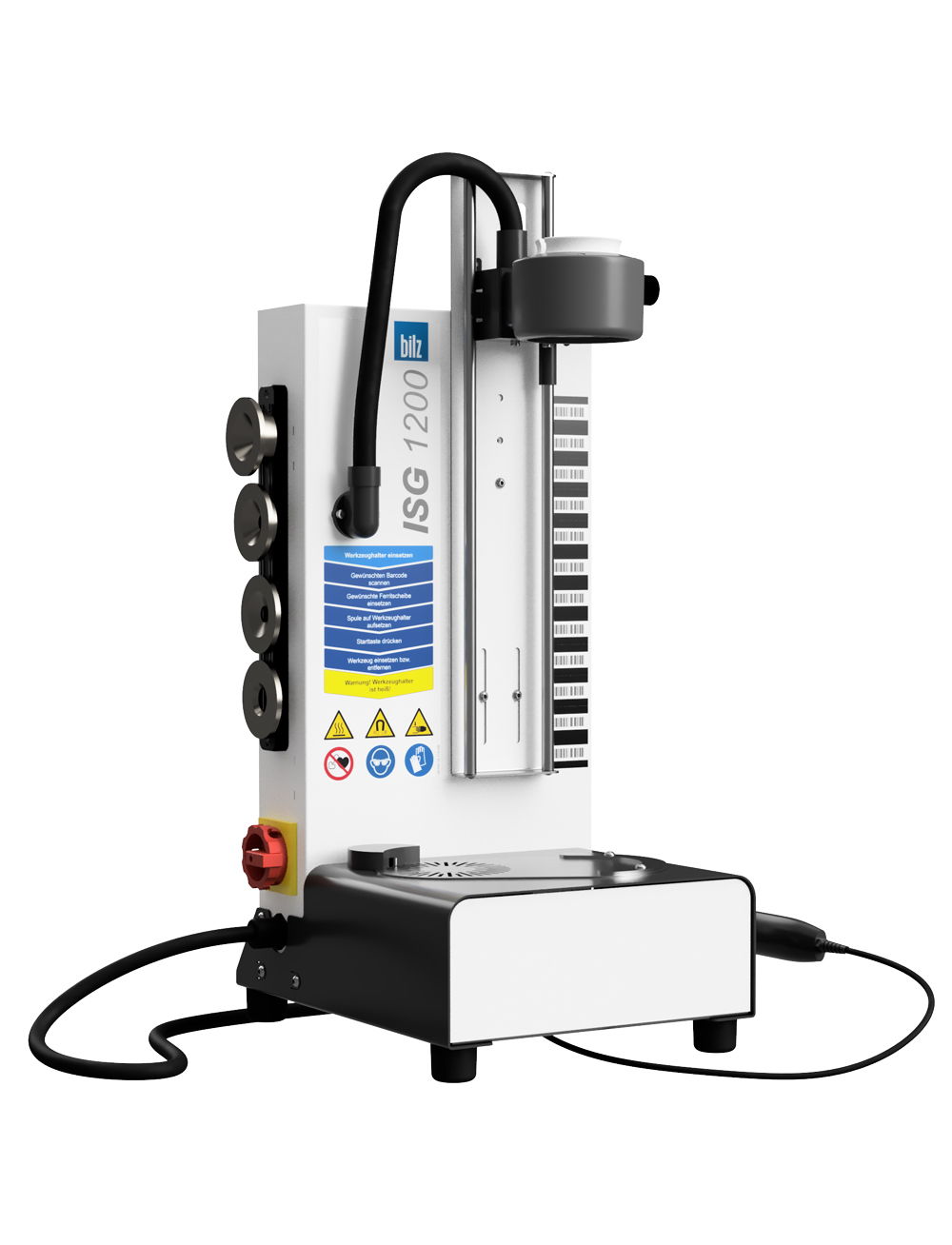

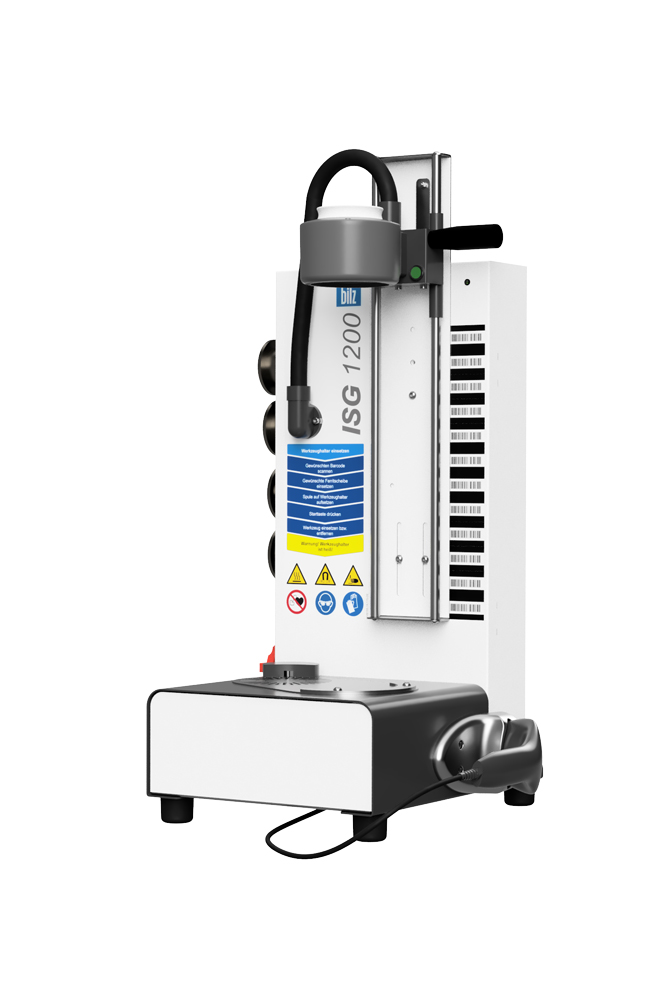

ThermoGrip® ISG 1200

The inexpensive compact entry-level shrink fit machine

APPLICATION

Application: entry-level shrink fit machine Ø 3 mm – 32 mm

Merkmale

  • Easy input of shrink parameters by scanning barcodes
  • Energy-saving induction technology stands for long tool service life
  • Precise centering of the tool
  • Low space requirement and mobile use
  • Highest holding force and enduring strength even in oily environments
  • For more than 20 years, ThermoGrip® shrink fit tools have stood
    for innovative premium equipment in shrink technology
  • Clamping range Ø 3 - 32 mm for all shrink fit chucks T, TSF, TB and TER
    (HSS Ø 10 - 20 mm / HM Ø 3 - 32 mm)
  • Integrated air cooling (cooling optionally available)
  • Maximum tool length from taper zero line: 390 mm @ HSK-A63
  • Cooling length: 200 mm

The entry-level device ThermoGrip® ISG 1200 20% less energy consumption with comparable performance

Clamp your tools safely and quickly - for more efficiency in your production

  • Position the tool holder
  • Scan barcode
  • Position the pole disc
  • Pull the coil down to the holder
  • Press start
  • Insert or remove tool
